Product Description
FEATURE AND FUNCTION

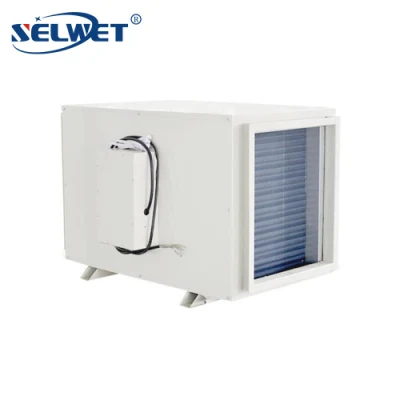

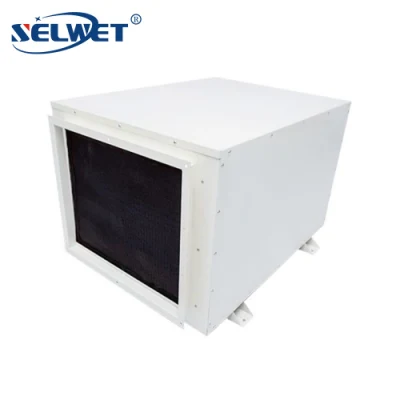

Ceiling Dehumidifier: Ultra-thin design, efficient space saving; front return air, right air out, convenient installation
In addition to industrial dehumidification and dew condensation, it is more suitable for dehumidification in saunas, swimming pools, villas, etc., for dehumidification, warmth or drying in bathrooms.
1. The product is thin and compact, with double sound insulation inside, hoisted on the ceiling, and it will not occupy the floor space.
2. Adjust the operating conditions according to the temperature and humidity requirements of the environment.
3. Computer humidity control
4. Blue screen LCD digital display
5. Automatic defrosting
6. Compressor protection device
7. Humidity control function
8. Circuit protection system, fault code display.
9. High-precision sensing 1% precision adjustment control system
TECHNICAL DATA
| MODEL | SGD-251D | SGD-381D | SGD-501D | SGD-901D | SGD-1381D | SGDCF7 | SGDCF8.8 | SGDCF10 | SGDCF15 | SGDCF20 | SGDCF30 | SGDCF40 | SGDCF50 | |
| Dehumidification | kg/h | 1.0 | 1.6 | 2.1 | 3.75 | 5.75 | 7 | 8.8 | 10 | 15 | 20 | 30 | 40 | 50 |
| Cooling capacity | W | 300.0 | 500.0 | 800 | 3750 | 4200 | 8400 | 9000 | 12700 | 16800 | 25400 | 38100 | 50800 | 63500 |
| Application area | m² | 10-30 | 30-40 | 30-60 | 60-90 | 90-110 | 80-130 | 150-200 | 220-300 | 320-450 | 450-600 | 650-900 | 950-1250 | 1300-1600 |
| Voltage | 220V / 50HZ,Plug-in | 380V , 50HZ, three phase four wire system | ||||||||||||
| Rated Power Input (kw) | kw | 0.3 | 0.65 | 0.88 | 1.5 | 2 | 2.8 | 4 | 4.9 | 7.5 | 10 | 15 | 20 | 25 |
| Air Volumn (m³/h) | m³/h | 200 | 500 | 500 | 1000 | 1300 | 2000 | 2500 | 2800 | 4000 | 5600 | 8400 | 11200 | 14000 |
| Extranuclear pressure | Pa | 100 | 100 | 100 | 100 | 100 | 250 | 250 | 250 | 250 | 250 | 300 | 300 | 300 |
| Compressor | Type | (Scroll piston) rotary type | vortex type | rotary type | Fully enclosed vortex type | |||||||||
| Power(kw) | 0.22 | 0.35 | 0.44 | 1.1 | 1.5 | 2.2 | 2.2 | 3.68 | 4.41 | 7.35 | 11.03 | 14.7 | 18.38 | |
| cryogen | Type | R22 /R407C/ R410A | ||||||||||||
| saving mode | capillary tube | External balance thermal expansion valve | ||||||||||||
| Injection quantity(Kg) | 0.12 | 0.16 | 0.22 | 0.55 | 0.85 | 1.4 | 1.8 | 2.5 | 3.6 | 5 | 7.5 | 10 | 12.5 | |
| Dimension | L(mm) | 570 | 770 | 770 | 900 | 900 | 1100 | 1000 | 1000 | 1500 | 1500 | 1640 | 1400 | 1640 |
| W(mm) | 320 | 380 | 380 | 650 | 650 | 922 | 800 | 800 | 1106 | 1106 | 950 | 1190 | 1300 | |
| H(mm) | 255 | 400 | 420 | 600 | 600 | 656 | 700 | 700 | 705 | 705 | 700 | 1180 | 1300 | |
| Flange size | air inlet(mm) | 250*250 | 300*250 | 500*450 | 600*600 | 600*1000 | ||||||||
| air outlet(mm) | 200*200 | 200*200 | 250*250 | 390*310 | 750*310 | |||||||||
| Gross Weight | kg | 20 | 36 | 38 | 60 | 70 | 100 | 140 | 150 | 260 | 300 | 500 | 600 | 800 |
→ More Industrial Dehumidifier Please Click to Contact Us.
Our industrial commerical dehumidifier is used in national defense engineering, civil air defense engineering, tobacco and petrochemical industry, subway station, aerospace field, purification engineering, laboratory, telecommunication equipment room, archives, food room, pharmaceutical or film workshop,Special glass manufacturing and other dehumidifing field.
Hangzhou Shier Electrical Equipment Co.,LTD (Selwet Electrical), located in Hangzhou Dajiangdong Development Zone, introduces the advanced refrigeration technologies from Germany and is establishing itself as a high-tech enterprise focusing on the research & development, production, sale, and services of ventilating dehumidifiers and relevant products covering dehumidification projects and indoor air purification projects.
Since its establishment, Selwet Electrical has been seeking breakthroughs and committed to the research and development of temperature & humidity control related technologies. Aspiring to be the leader of the field, it can offer over one hundred types of products, including civilian dehumidifiers, industrial dehumidifiers, Constant temperature and humidity dehumidifiers, precision air conditioners, cellar and rotary air conditioner purifying units and ventilation systems. They are widely applied in the fields of biology, electronics, food, chemical industry, defense industry, tobacco and laboratories in institutions of higher education for the purpose of providing customers with favorable indoor and working environment.
We keep on improving quality and customer satisfaction. Besides a sale network across China, we have entered the markets of North America, South America, Europe, and Southeast Asia, and won favor and forged a friendly relationship with considerable customers.
Strength is built by effort, altitude is affected by attitude. We maintain the attitude of "faithfulness, responsibleness, unitedness, and aggressiveness", and fulfill quality requirements in every aspect. We embrace the philosophy of "keeping on improving ourselves** and work diligently to deliver high-quality temperature and humidity control products.
In the future, we will continue to create more quality products and press ahead to pursue our dream of establishing ourselves as an influential world leader in the field of temperature and humidity control.
By continuously improving its management, the Company has passed such enterprise or product certification as ISO9001, ISO14001, the EU's CE marking and China's 3C. Our dehumidifiers are trustworthy: Selwet is one of the sponsors of the 2022 Beijing Winter Games.
1. Can you customize the product?
Yes, We can customize products according to customers' requirements.
2.What kind of payment terms you do?
Paypal, West Union, T/T, L/C
3. What kind of shipment available?
By sea, by air, by express or as your requirement
4. How long is the delivery time?
15 working days
1.Put it on rugged and flat ground to avoid machine shake
2.Please sure the voltage of the power supply is consistent with the machine
3.Do not use the same socket together with other appliances
4.The machine should not be placed next to the heat source, to avoid increasing power or failure
5.Do not use the machine when the environmental temperature is over 38 degrees C
6.Do not exceed 45 degrees when moving or handling the machine
